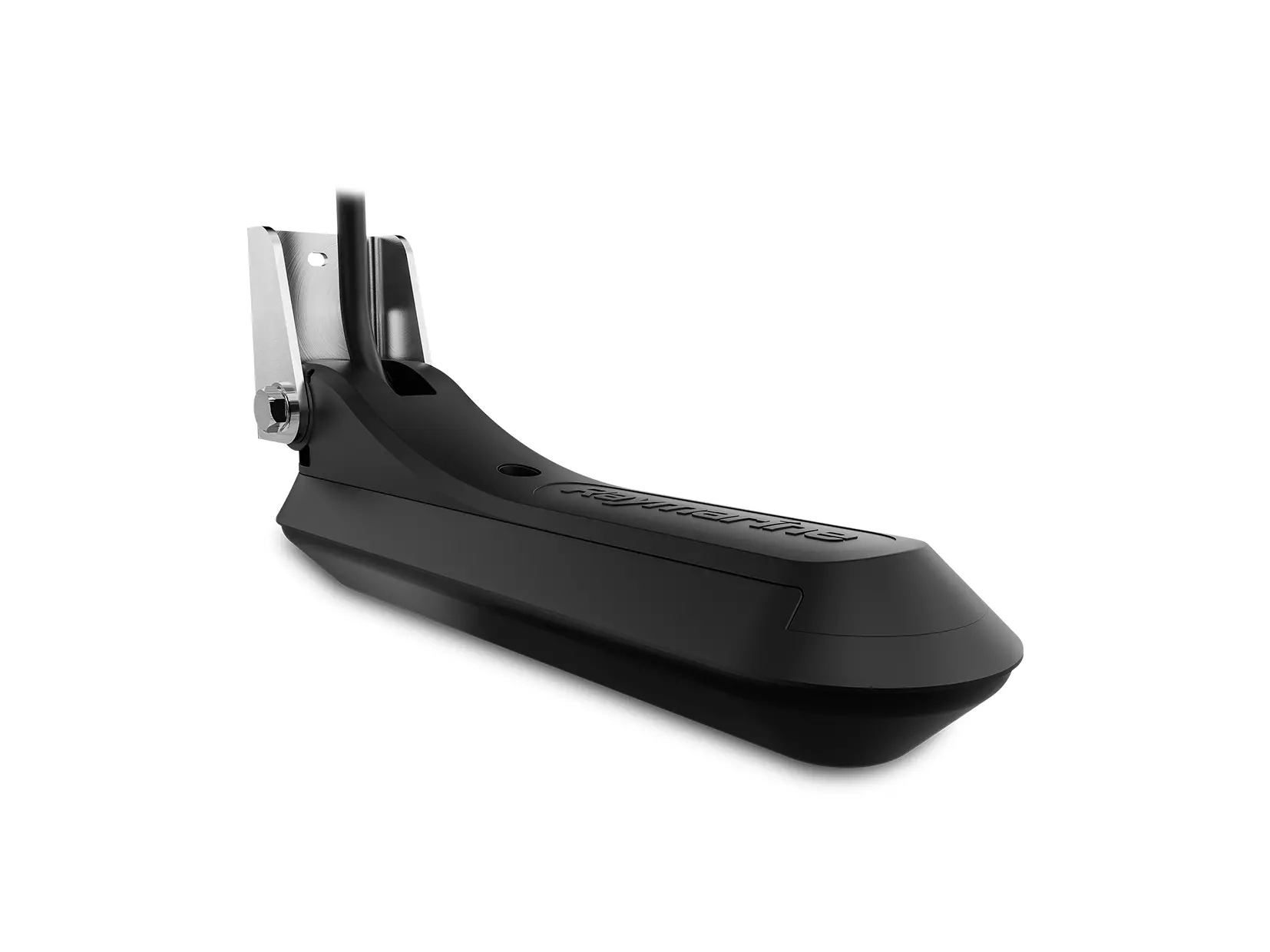

RealVision 3D
Related Products
No related products linked yet.
More in Transducers & Sensors
- B260 Through-Hull Transducer
Raymarine
- B60 12º Tilted Element Transducer
Raymarine
- B60 20º Tilted Element Transducer
Raymarine
- DST800 Analog Transducer
Raymarine
- DT800 0° Depth / Temperature Smart Transducer
Raymarine
- DT800 12° Depth / Temperature Smart Transducer
Raymarine
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine A80703"
Product Details (11)
Sensors
Temperature sensor, AHRS (Attitude and Heading Reference System) sensor
Sonar channels
RealVision Max 3D, SideVision, DownVision, Conical High CHIRP 600 W @ 200 kHz
Beam width
200 kHz: 12°
Dimensions
Length: 256.6 mm (10.10 in), Height: 120.5 mm (4.74 in)
Cable length
8 m (26.2 ft)
Weight (including brackets)
0.647 kg (1.42 lb)
Waterproof rating
IPx6 (surfaces exterior to hull only), IPx7, IPx8
Storage temperature range
-20°C (23°F) to + 70°C (158°F)
Operating temperature range
-2°C (28.4°F) to + 55°C (131°F)
Standards
EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
Sonar range
CHIRP sonar = 0.6 M (2 ft) to 365 m (1,200 ft), DownVision = 0.6 M (2 ft) to 182 m (600 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft), RealVision Max 3D = 0.6 M (2 ft) to 91 m (300 ft)
