RSW Wired
OEM: E70670

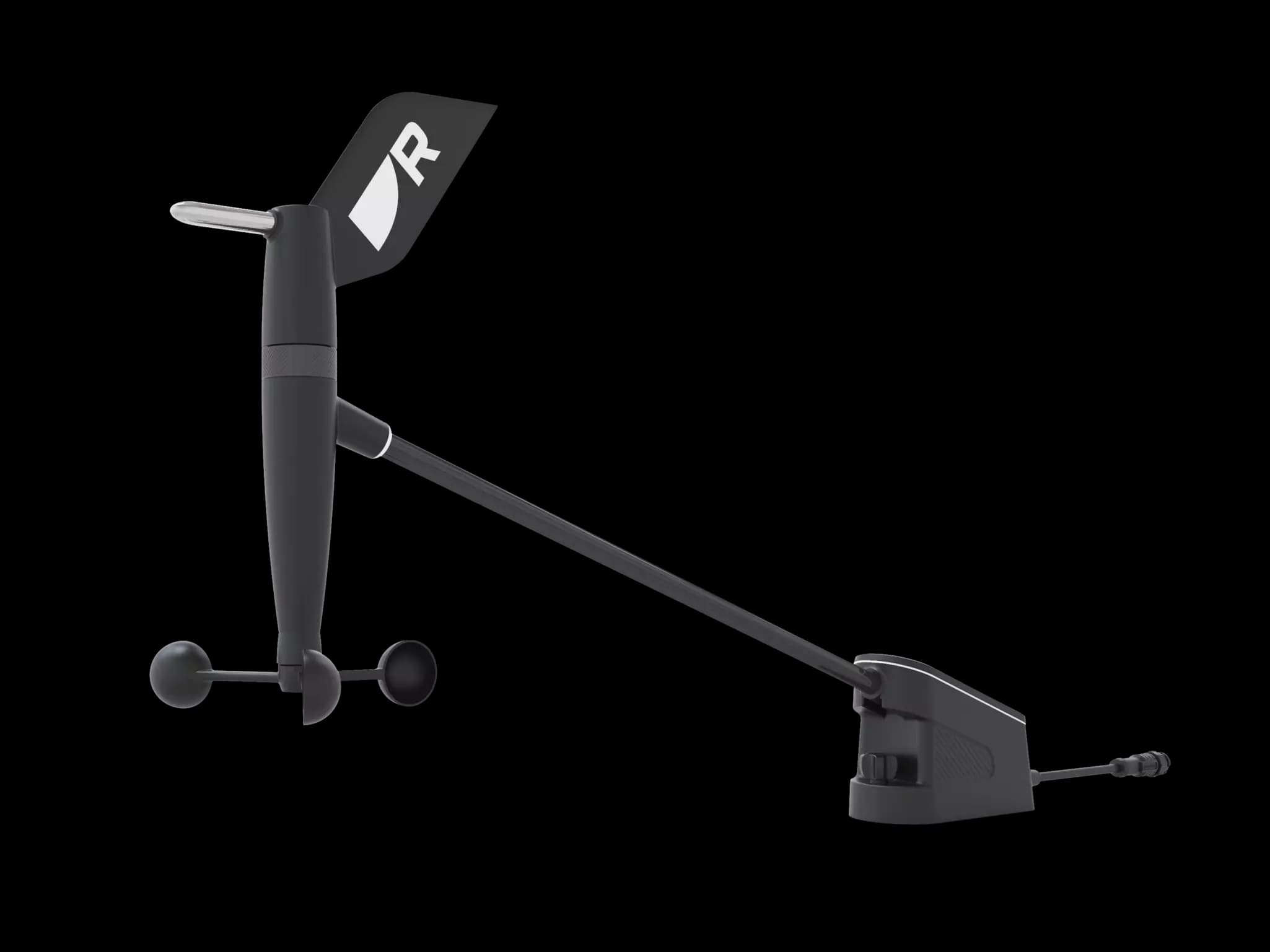

RSW Wired - Smart Performance Wind Transducer, Short Arm with 30m Cable
1 / 2
Main
Related Products
No related products linked yet.
More in Transducers & Sensors
- B260 Through-Hull Transducer
Raymarine
- B60 12º Tilted Element Transducer
Raymarine
- B60 20º Tilted Element Transducer
Raymarine
- DST800 Analog Transducer
Raymarine
- DT800 0° Depth / Temperature Smart Transducer
Raymarine
- DT800 12° Depth / Temperature Smart Transducer
Raymarine
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine E70670"
Product Details (19)
Length
Wind transducer (including cable): 657.762 mm (25.90 in)Wind transducer (excluding cable): 540.712 mm (21.29 in)Wired gateway: 155.61 mm (6.13 in)
Width
Wind transducer: 46.96 mm (1.85 in)Wired gateway: 47.38 mm (1.88 in)
Height
Wind transducer: 305.86 mm (12.04 in)Wired gateway: 30.61 mm (1.21 in)
Nominal supply voltage
12 V dc (via SeaTalk NG)
Operating voltage range
9 V to 16 V dc
Power Consumption
< 100 mW
Fuse rating
Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating:
1
Operating temperature range
-25°C to +55°C (-13°F to +131°F)
Storage temperature range
-30°C to +70°C (-22°F to +158°F)
Relative humidity
Masthead: 100%Below deck: up to 93% @ 40°C
Waterproof rating
Wind transducer: IPx6/IPx7Wired gateway: IPx3
Wind
115 mph (185 kph)
Vibration
EN 60945:2002 (exposed)
Europe, Australia & New Zealand
EN 60945:2002
Canada
ICES-003
USA
CFR47 Part 15
Japan / China
IACS section E10
Product markings
UKCACEAustralian TickWEEE DirectiveIndustry Canada
