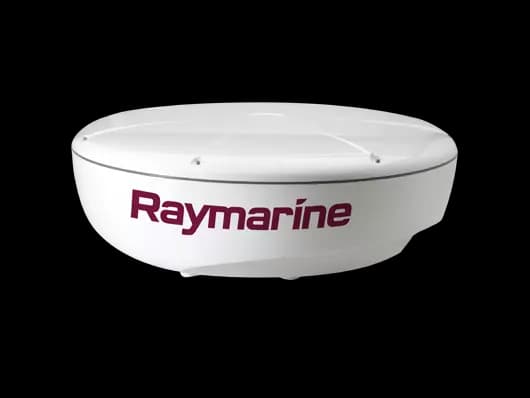

RD424HD Color 24" Radome
OEM: T70169
10 meter power and data interconnect cable included
1 / 2
Main
Related Products
No related products linked yet.
More in Radar
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine T70169"
Product Details (37)
Dimensions - 18" antenna
Φ521 mm x 247 mm (20.5 in x 9.7 in)
Dimensions - 24" antenna
Φ652 mm x 247 mm (25.67 in x 9.7 in)
Weight - 18" antenna
9.5 kg (21 lbs)
Weight - 24" antenna
10 kg (22 lbs)
Supply voltage
Either 12 V dc or 24 V dc nominalMinimum: 10.8 VMaximum: 33 V
Power consumption
60 W (25 W standby)
Waterproof to
IPX6
Operating temperature range
-25 °C to +55 °C (-13 °F to +131 °F)
Humidity
Up to 95% at 35 °C (95 °F)
Maximum wind speed
100 kts
Maximum range scale
48 Nautical miles (Nm)
Type
Patch array
Transmit frequency
9405 MHz ±25 MHz
Peak power output
4 kW
Duplexer
Circulator
Standby mode
Magnetron heater - ONMagnetron control - ONAll other services - OFF
Beamwidth (nominal)
Horizontal: 4.9° (18 in antenna), 3.9° (24 in antenna)Vertical: 25°
Polarization
Horizontal
Intermediate frequency
70 MHz
Receiver characteristic
Linear
Receiver noise
Less than 5 dB (including low noise converter and IF amplifier)
Bandwidth
Matched digital filter for each pulse length
Axiom 2 Pro - 9", 12" and 16" RVM and -S variants
Yes
Axiom+ - 7", 9" and 12" RV and chartplotter variants
Yes
Element - 7", 9" and 12" HV and -S variants
No
Axiom Pro - 9", 12" and 16" RVX and -S variants
Yes
Axiom - 7", 9" and 12" RV and chartplotter variants
Yes
gS-Series - gS95, gS125 and gS165
Yes
eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165
Yes
e-Series - e7, e7D, e95, e97, e125, e127, e165
Yes
c-Series - c95, c97, c125, c127
Yes
a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128
Yes
E-Series Widescreen - E90W, E120W, E140W
Yes
C-Series Widescreen - C90W, C120W, C140W
Yes
G-Series Classic - GPM400
Yes
E-Series Classic - E80, E120
Yes
C-Series Classic - C70, C80, C120
No1
