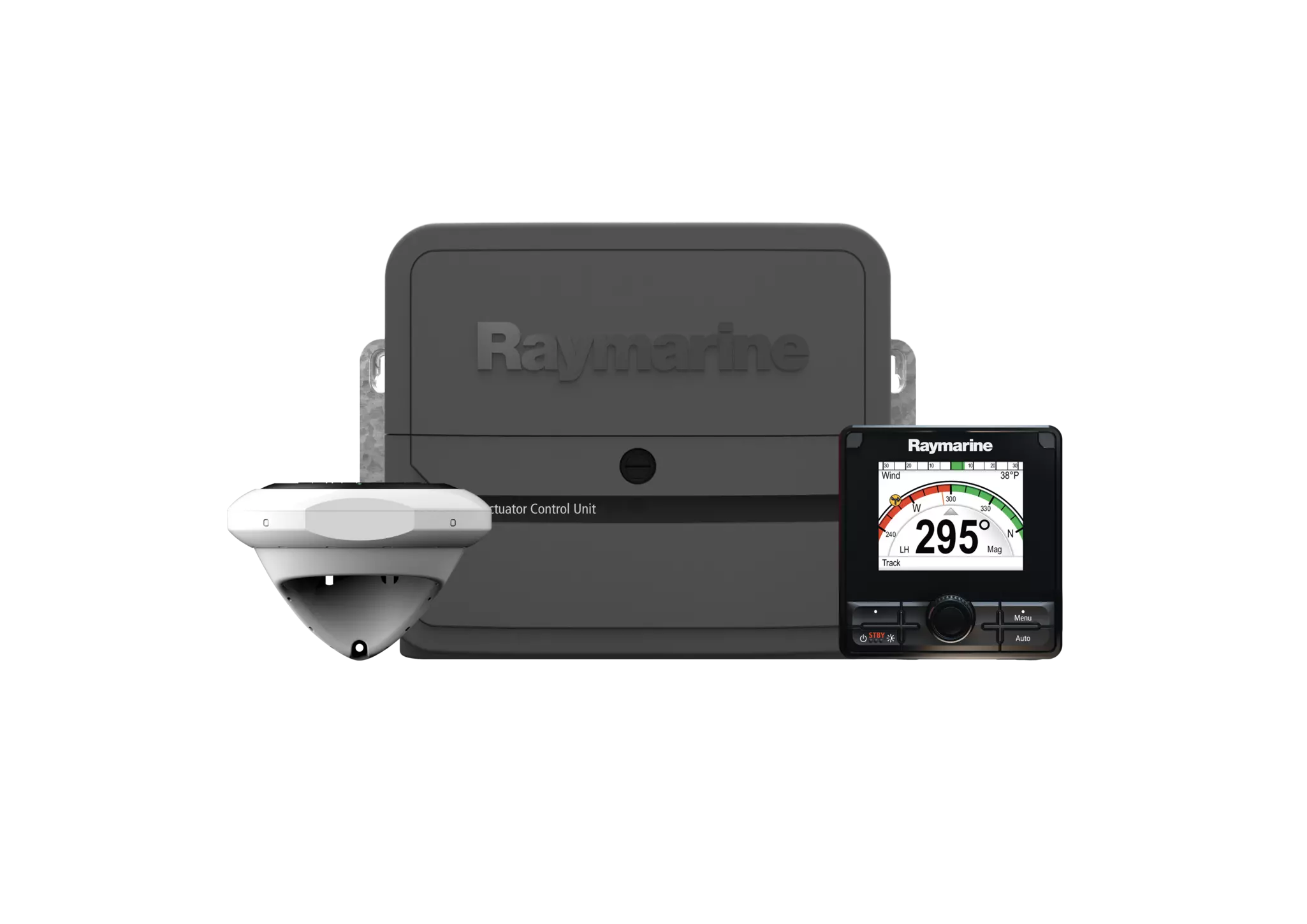

EV-300 Solenoid Pilot
OEM: T70160
Works with solenoid controlled and constant-running hydraulic steering systems
1 / 2
Main
EV-1 Sensor Core Included
Related Products
No related products linked yet.
More in Autopilots
- 12V Constant Running Hydraulic Pump
Raymarine
- 12-Volt, Type 1 pump for hydraulic steering systems
Raymarine
- 12-Volt, Type 2 pump for hydraulic steering systems
Raymarine
- 12 Volt, Type 2 Rotary Autopilot Drive
Raymarine
- 12-Volt, Type 3 pump for hydraulic steering systems
Raymarine
- 24V Constant Running Hydraulic Pump
Raymarine
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine T70160"
Product Details (13)
Standards
Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
Dimensions
Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)
Weight
2.2 kg (4.84 lbs)
Power consumption (standby) - main power supply
300 mA (12 / 24 V)
Power output to SeaTalkng bus
3 A @ 12 V (fuse protected at 3 A)
Power consumption (standby) - SeaTalkng bus
20 mA (12 V)
Nominal supply voltage
12 / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
LEN (NMEA 2000 Load Equivalency Number)
1
Relative humidity
Max. 93%
Waterproof rating
Drip resistant
Storage temperature
-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature
-20 °C to +55 °C (-4 °F to 131 °F)
