Main

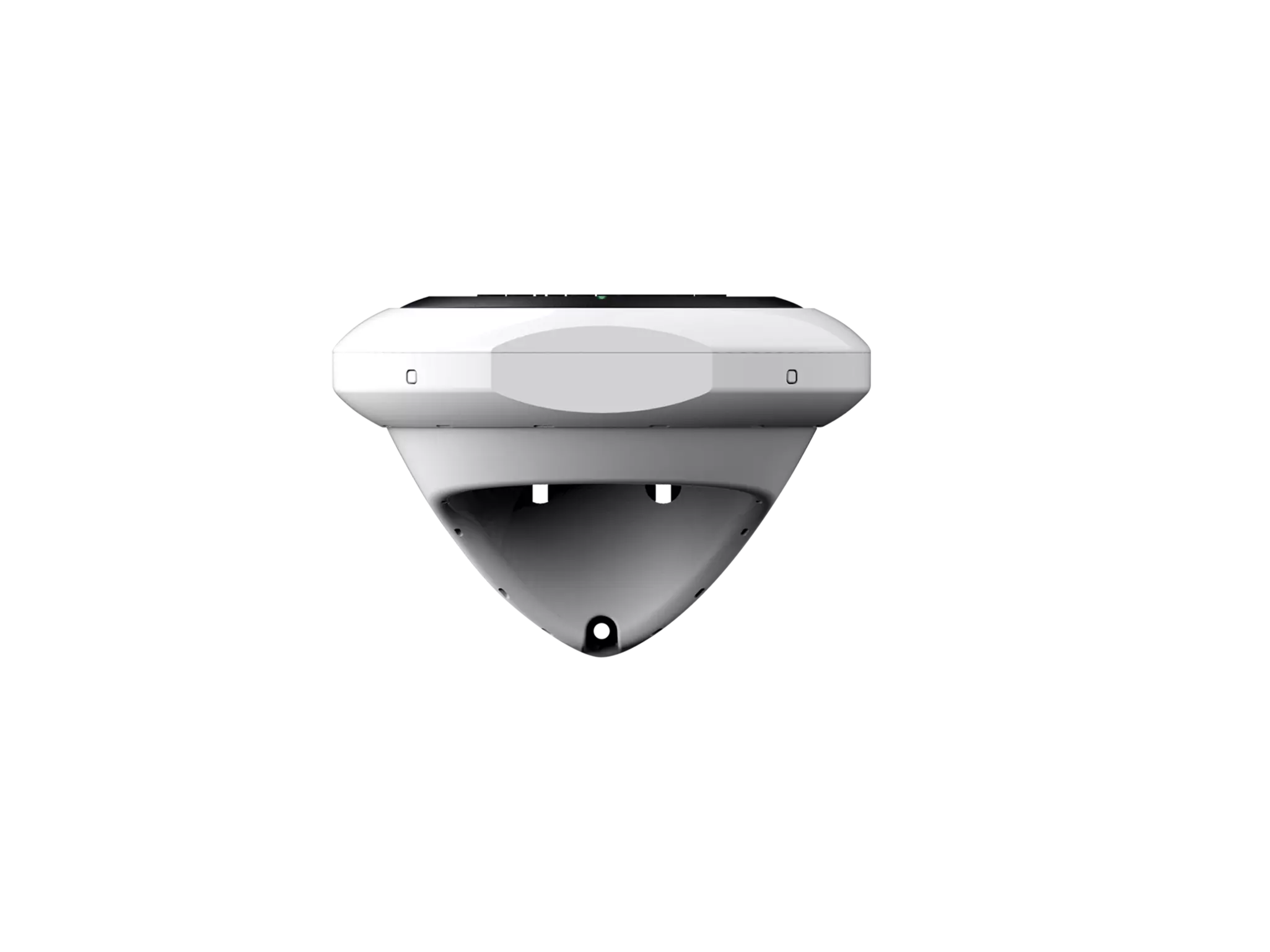

Convenient above or below decks mounting. Surface and bulkhead mounts included.
Compatible Boats
1 fitmentLeopard 482013-2016
Original part
Related Products
No related products linked yet.
More in Autopilots
- 12V Constant Running Hydraulic Pump
Raymarine
- 12-Volt, Type 1 pump for hydraulic steering systems
Raymarine
- 12-Volt, Type 2 pump for hydraulic steering systems
Raymarine
- 12 Volt, Type 2 Rotary Autopilot Drive
Raymarine
- 12-Volt, Type 3 pump for hydraulic steering systems
Raymarine
- 24V Constant Running Hydraulic Pump
Raymarine
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine E70096"
Product Details (12)
Relative humidity
Max. 93%
Waterproof rating
IPx6
Storage temperature
-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature
-25 °C to +55 °C (-13 °F to 131 °F)
Standards
Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
Dimensions
Diameter: 140 mm (5.5 in), Depth (including mounting enclosure): 35 mm (1.4 in), Depth (including wall bracket): 95 mm (3.8 in)
Sensors
3-axis digital accelerometer, 3-axis digital compass, 3-axis gyro digital angular rate sensor
Weight
0.29 kg (0.64 lbs)
Nominal supply voltage
12 V dc
Operating voltage range
10.8 V dc to 15.6 V dc
Power consumption
30 mA
LEN (NMEA 2000 Load Equivalency Number)
1
