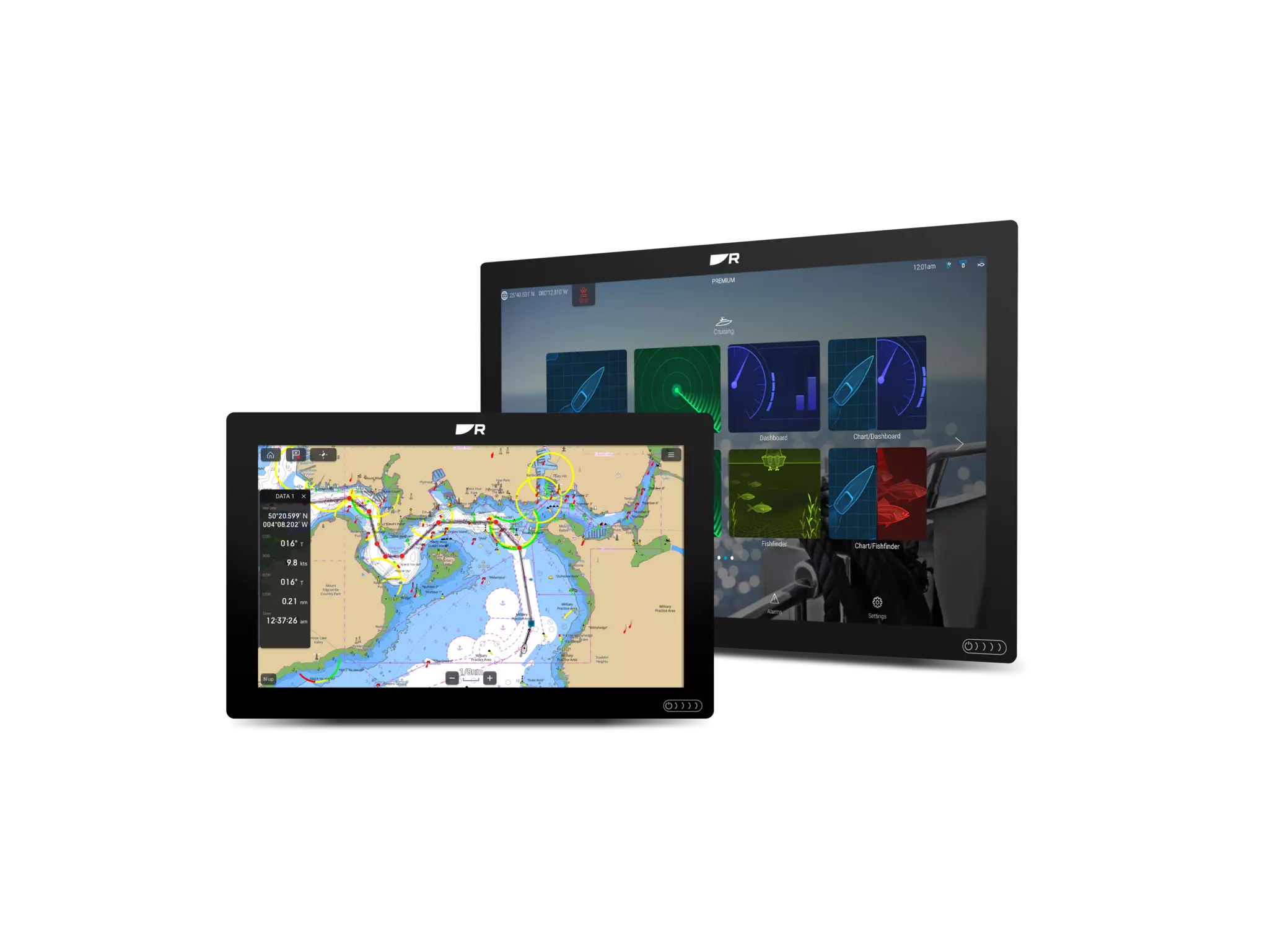

Axiom 2 XL 24 Chartplotter Kit
OEM: T70548
Main
Related Products
No related products linked yet.
More in Multifunction Displays
- aSeries
Raymarine
- Axiom+ 12
Raymarine
- Axiom+ 12 | LightHouse Charts North America
Raymarine
- Axiom 2 | 12" Display | Australia New Zealand
Raymarine
- Axiom 2 | 12" Display | Mediterranean
Raymarine
- Axiom 2 | 12" Display | North America
Raymarine
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine T70548"
Product Details (39)
Dimensions
Axiom 2 XL 16: Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)Axiom 2 XL 19: Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)Axiom 2 XL 22: Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)Axiom 2 XL 24: Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)
Weight
Axiom XL 16: 5.9 kg (13 lbs)Axiom XL 19: 7.6 kg (16.76 lbs)Axiom XL 22: 9.9 kg (21.83 lbs)Axiom XL 24: 11.3 kg (24.9 lbs)
USB connection
USB-A: Touch input, USB-B: Touch output
Accessory connection
USB Micro B
GPS antenna connection
TNC type connector
External storage
Remote card reader required
Ethernet connection
PoE RayNet (10/100/1,000 Mbits/s) x 3
HDMI connections
HDMI in, HDMI out
Audio output
Left and Right RCA connectors via Power/Video/Audio cable.
Analog video connections
Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
NMEA 0183 Support
Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)
NMEA 2000 connection
DeviceNet connector
Wireless connections
Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
External alarm connection
Bare-ended wires x 2
Internal storage
64 GB Solid State
Power consumption @ 12 V dc
Axiom 2 XL 16: 76.56 WAxiom 2 XL 19: 85.42 WAxiom 2 XL 22: 94.25 WAxiom 2 XL 24: 92.5 W
Power consumption @ 24 V dc
Axiom 2 XL 16: 71.53 WAxiom 2 XL 19: 73.98 WAxiom 2 XL 22: 79.46 WAxiom 2 XL 24: 77.96 W
Off current @ 12 V dc
PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
Off current @ 24 V dc
PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
PoE operating voltage range
9.5 V dc to 32 V dc
Current
Axiom 2 XL 16: 8.56 AAxiom 2 XL 19: 8.98 AAxiom 2 XL 22: 10.12 AAxiom 2 XL 24: 10.03 A
Operating voltage range
8 V dc to 32 V dc
Fuse rating
15 A
Nominal supply voltage
12 V dc / 24 V dc
LEN (NMEA 2000 Load Equivalency Number)
1
Resolution
Axiom 2 XL 16: 1920 x 1080 pixelsAxiom 2 XL 19: 1920 x 1080 pixelsAxiom 2 XL 22: 1920 x 1080 pixelsAxiom 2 XL 24: 1920 x 1200 WUXGA
Size (diagonal)
Axiom 2 XL 16: 15.6"Axiom 2 XL 19: 18.5"Axiom 2 XL 22: 21.5"Axiom 2 XL 24: 24"
Illumination
Axiom XL 16: 1300 nits / 1300 cd/m2Axiom XL 19: 1200 nits / 1200 cd/m2Axiom XL 22: 1275 nits / 1275 cd/m2Axiom XL 24: 1300 nits / 1300 cd/m2
Viewing angle
Axiom 2 XL 16: Top 88° / Bottom 88° / Left 88° / Right 88°Axiom 2 XL 19: Top 88° / Bottom 88° / Left 88° / Right 88°Axiom 2 XL 22: Top 89° / Bottom 89° / Left 89° / Right 89°Axiom 2 XL 24: Top 89° / Bottom 89° / Left 89° / Right 89°
Ratio
Axiom 2 XL 16: 16:9Axiom 2 XL 19: 16:9Axiom 2 XL 22: 16:9Axiom 2 XL 24: 16:10
Type
IPS (In-Plane Switching)
Color depth
24-bit
Number of simultaneous touches
2
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Relative humidity
up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
Variant - screenize
24"
Variant - axiom2xl_kit_option
Card Reader Included
