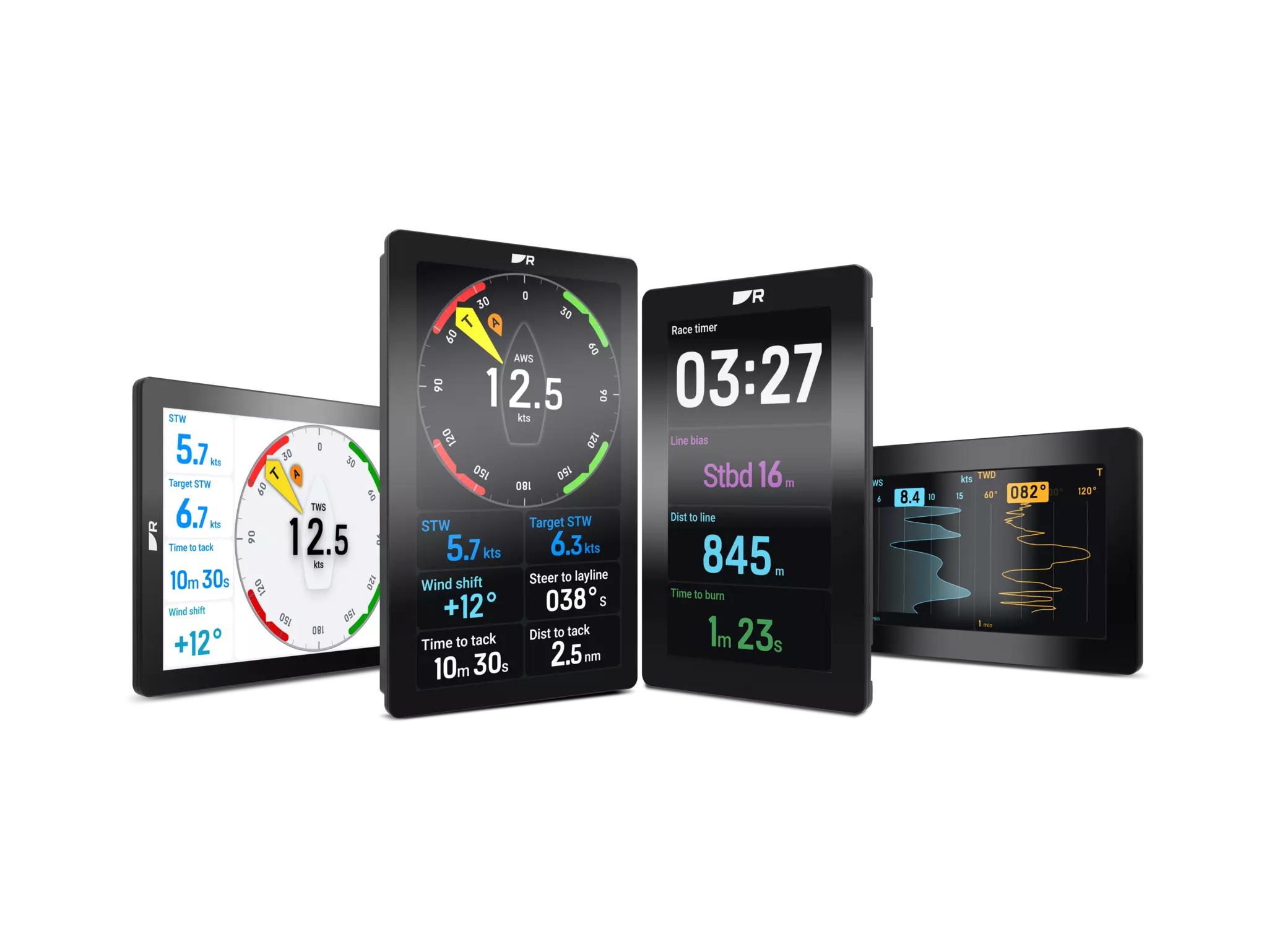

Alpha 7" Display
OEM: E70649
7” high bright, high contrast sailing instrument display
1 / 2
Main
Power cable sold separately
Related Products
No related products linked yet.
More in Instruments
- Alpha 9" Display
Raymarine
- i40 Bidata Display
Raymarine
- i40 Bidata Through Hull Pack
Raymarine
- i40 Depth instrument display
Raymarine
- i40 Depth Pack
Raymarine
- i40 Depth Pack, with Transom Transducer
Raymarine
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine E70649"
Product Details (26)
Port separation distance
5.71 mm (0.22 in)
Weight
Alpha 7" display — 0.72 kg (1.59 lbs)Alpha 9" display — 1.18 kg (2.60 lbs)
Nominal supply voltage
12 V / 24 V dc
Operating voltage range
10.8 V to 32 V dc
Current
Alpha 7" display — 0.84 A (nominal) @ 12 V dc / 0.43 A (nominal) @ 24 V dcAlpha 9" display — 1.02 A (nominal) @ 12 V dc / 0.52 A (nominal) @ 24 V dc
Power consumption
Alpha 7" display — 10 W (maximum)Alpha 9" display — 12 W (maximum)
Inline fuse rating
8 A
Thermal breaker rating
8 A
Axiom
The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
Data connections
1 x Daisy-chain connector.1 x Power / RayNet Ethernet connector
Operating temperature range
-25°C to +55°C (-13°F to +131°F)
Storage temperature range
-30°C to +70°C (-22°F to +158°F)
Relative humidity
93% Max
Waterproof rating
IPx6 and IPx7
Display screen
Alpha 7" display — 7” IPS TFT LCDAlpha 9" display — 9” IPS TFT LCD
Brightness / Luminance
1500 nits / 1500 cd/m2
Viewing angles
Portrait — 85 + / 85 +Landscape — 85 + / 85 +
Resolution
Alpha 7" display — 1024 (H) x 600 (V)Alpha 9" display — 1280 (H) x 720 (V)
PPI (Pixels Per Inch)
Alpha 7" display — 170 PPIAlpha 9" display — 163 PPI
Color
24-bit color (16.7 million colors)
Refresh rate
60 Hz
Europe, Australia & New Zealand
EN 60945:2002
Canada
ICES-003
USA
CFR47 Part 15
Japan / China
IACS section E10
Product markings
UKCACEAustralian TickWEEE DirectiveIndustry Canada
