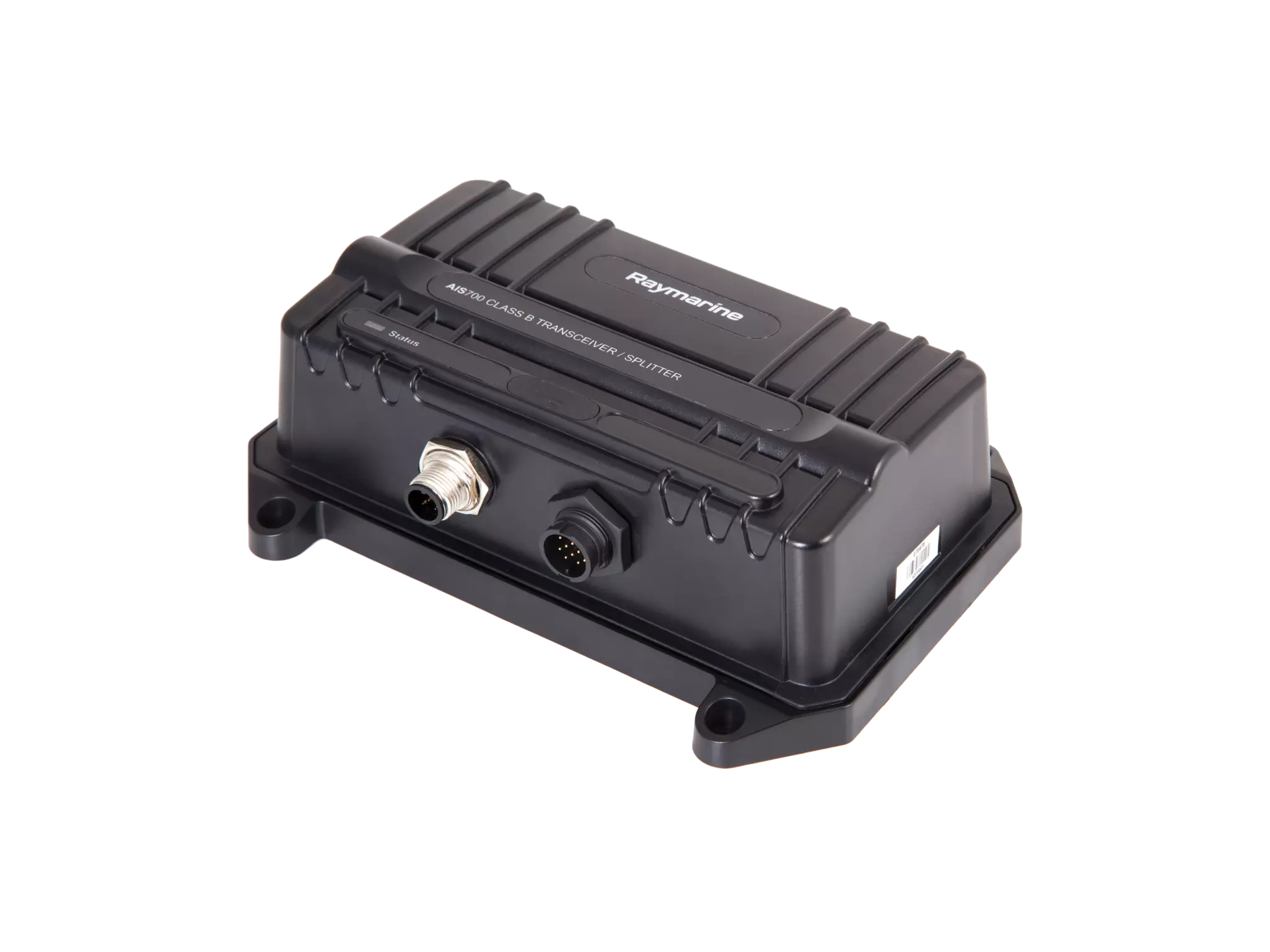

AIS700 - Class B Transceiver
OEM: E70476
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver with a built-in antenna splitter.
1 / 2
Main
Related Products
No related products linked yet.
More in AIS
- AIS100
Raymarine
- AIS4000 - Class A Transceiver
Raymarine
- AIS5000 - Class A Transceiver
Raymarine
- AIS950
Raymarine
Customer Reviews
No reviews yet for this product.
Where to Buy
Sign in to see store prices for this part.
Log inSearch at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine E70476"
Product Details (27)
Relative humidity
Up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
Storage temperature
-20°C to +75°C (-4°F to 167°F)
Operating temperature
-15°C to +55°C (5°F to 131°F)
Operating frequency
Transmitting: 156.0MHz to 162.025 MHz, Receiving: 156.0MHz to 174.0 MHz
Class
B (transceiver)
AIS performance
5 W SOTDMA
Channel spacing
25 kHz
Receiver Qty
2
Transmitter Qty
1
VHF antenna connection
SO-239 co-axial
VHF radio connector type
SO-239 co-axial
NMEA 0183 connection
Port 1 (MFD connection): HS (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate, Port 2 (Instrument connection: (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate
USB connection
Micro-B
Dimensions
Height: 132.55 mm (5.22 in), Width: 171.65 mm (4.81 in), Depth: 57 mm (2.24 in)
NMEA 2000 connection
DeviceNet connector
Silent mode switch connection
Bare-ended wires x 2
GNSS antenna connector type
50Ω TNC co-axial
Cold start acquisition
26 seconds (nominal)
Channels
72
Operating voltage range
9.6 V dc to 31.2 V dc
Power consumption
3 W
Fuse rating
3 A
Peak current @ 12 V dc
2.5 A
Nominal supply voltage
12 V dc / 24 V dc
Peak current @ 24 V dc
1.25 A
LEN (NMEA 2000 Load Equivalency Number)
1
