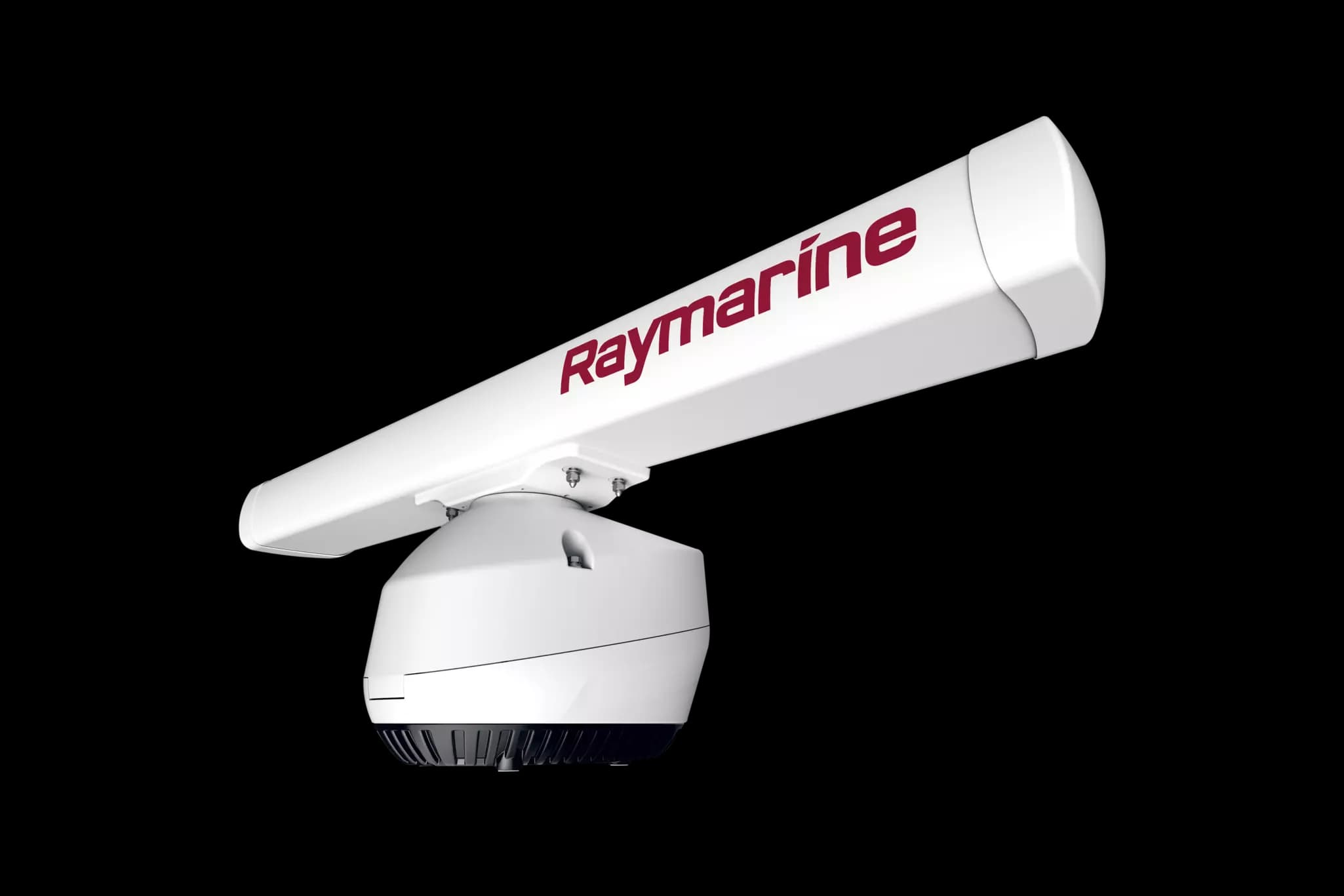

UnavailableSearching for: "Raymarine E70484"
Product Details (33)
Power consumption
Sleep: < 1.2 W
Standards
USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3
Relative humidity
Up to 95% @ 35°C (95°F)
Waterproof rating
IPx6
Maximum wind speed
85 knots
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Maximum range scale
72 nautical miles
Beamwidth (horizontal)
4' Array: 1.85° (nominal)6' Array: 1.15° (nominal)
Peak power output
4 kW
Standby mode
Magnatron heater: ON, Magnetron control: ON, All other services: OFF
Polarization
Horizontal
Transmit frequency
9405 MHz ±20 MHz
Warm-up time
75 seconds
Beamwidth (vertical)
25° (nominal)
Rotation speed
24 RPM / 48 RPM
Standby to transmit
2.5 seconds
Dimensions
4 ' Array: 1306 mm (51.4 in)6' Array: 1918 mm (75.7 in)
Weight
29 kg (63.93 lbs)
Axiom 2 Pro - 9", 12" and 16" RVM and -S variants
Yes
Axiom+ - 7", 9" and 12" RV and chartplotter variants
Yes
Element - 7", 9" and 12" HV and -S variants
No
Axiom Pro - 9", 12" and 16" RVX and -S variants
Yes
Axiom - 7", 9" and 12" RV and chartplotter variants
Yes
gS-Series - gS95, gS125 and gS165
Yes
eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165
Yes
e-Series - e7, e7D, e95, e97, e125, e127, e165
Yes
c-Series - c95, c97, c125, c127
Yes
a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128
Yes
E-Series Widescreen - E90W, E120W, E140W
Yes
C-Series Widescreen - C90W, C120W, C140W
Yes
G-Series Classic - GPM400
Yes
E-Series Classic - E80, E120
Yes
C-Series Classic - C70, C80, C120
No1
